Retaining wall drainage decides whether a Long Island wall stands straight or leans out by year five, because water, not weight, breaks most segmental walls. Saturated soil behind the block adds pressure the wall was never designed to hold, and the repair costs far more than the stone and pipe that would have prevented it.
We have built walls across Suffolk County for more than 15 years, and the pattern rarely changes. The block looks fine, the caps look fine, and the water behind them has nowhere to go. This guide covers what correct retaining wall drainage looks like, what the published standards actually say, and which town wants a permit first.
Quick answer: Correct retaining wall drainage means a 12 inch thick zone of clean 1 inch minus crushed stone behind the units, a collector pipe of at least 3 inches set just behind the block face, outlets spaced 20 to 50 feet along the wall, secondary pipes sloped at least 2 percent, and a leveling pad at least 6 inches thick.
Table of Contents
Why Water, Not Weight, Breaks Long Island Walls
Water weighs 62.4 pounds per cubic foot. Once the backfill behind a wall is saturated, that water pressure is added on top of the lateral soil pressure the wall already carries, which is how the Federal Highway Administration describes the loading in its earth retaining structures manual.
At roughly 4 feet of saturated depth the water alone works out to about 250 pounds per square foot, close to 500 pounds on every linear foot of wall. A hydrostatic pressure wall failure is simply that load arriving on a structure built for dry soil. The same manual is blunt about the remedy: drain the backfill rather than design for the load. With 45.99 inches of normal annual precipitation and 31.8 inches of snow, Long Island gives a wall plenty of chances to find out.
Retaining Wall Drainage Starts With 12 Inches of Clean Stone
The first component is a drainage aggregate zone 12 inches thick directly behind the wall units, built from clean crushed stone sized 1 inch minus. Clean matters more than the size does. Wall drainage gravel with fines mixed through it plugs within a few seasons and turns into the thing it was meant to prevent.
That zone gives water a path straight down instead of a chance to sit against the block. Design guidance published by the Concrete Masonry and Hardscapes Association treats it as a standard part of segmental wall construction, not an optional extra. Skimping here is invisible on delivery day and expensive later, which is why retaining wall drainage belongs in the written scope before anyone orders block. Ask for the wall drainage gravel spec in the proposal.
The Drain Pipe Behind Wall Units Carries Water Away
Stone moves water down. Something has to move it out. A collector pipe of at least 3 inches in diameter sits at the bottom of the stone zone, just behind the face of the block, and runs the length of the wall.
Outlets are the part crews skip when the day runs long. Along the wall, outlets belong every 20 to 50 feet, and any secondary pipe carrying water to daylight should fall at a minimum slope of 2 percent. A drain pipe behind wall units with no outlet is a buried trough, and it fills. Good retaining wall drainage is a loop you can trace on paper from the stone, into the pipe, through an outlet, and onto ground that slopes away from the house.

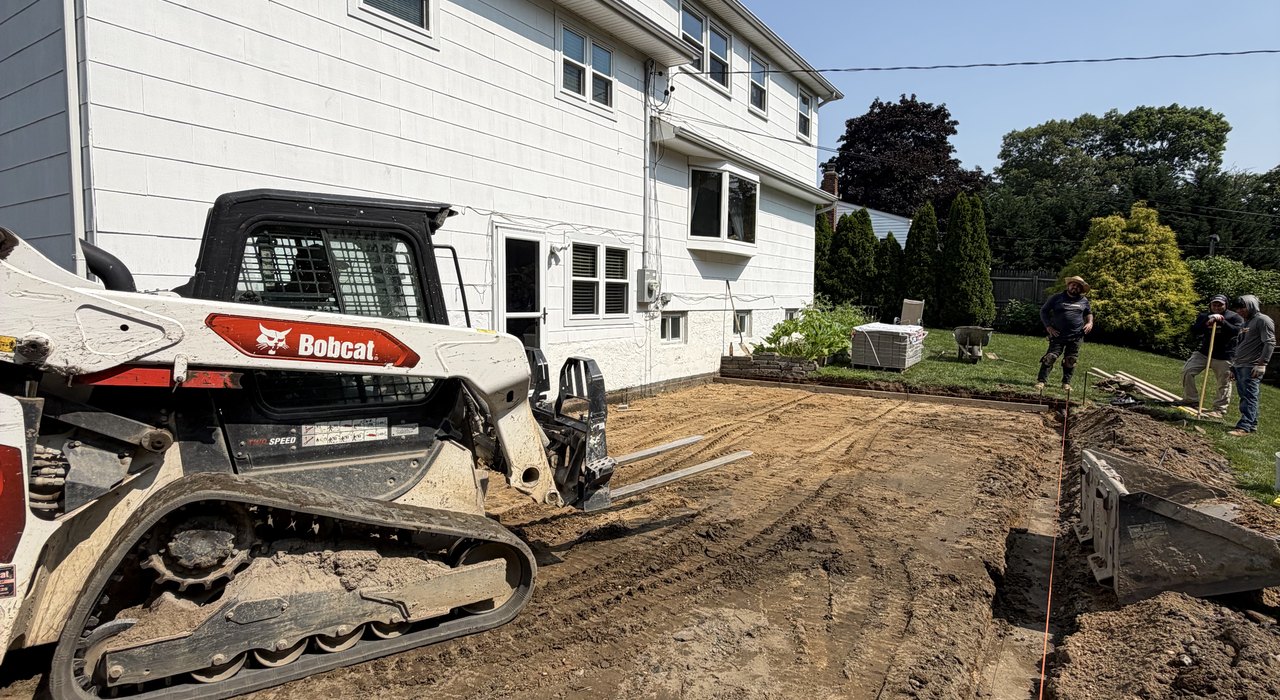

The Leveling Pad and the Trench Behind It
Every course above depends on the pad below. The leveling pad under a segmental wall should be at least 6 inches thick, and the excavation is wider than most homeowners expect.
- At least 6 inches of excavation in front of the unit.
- The full width of the wall unit itself.
- At least 12 more inches behind the unit for the stone.
- A leveling pad of 6 inches minimum thickness under all of it.
Add those together and the trench is far bigger than the wall you see. A crew that digs only wide enough to set block has already made proper retaining wall drainage impossible, because there is no room left for the 12 inch stone zone or the pipe. Our guide to hiring a residential wall contractor covers what that trench should look like on day one.
Where Weep Holes and Fabric Actually Fit
Search for weep holes retaining wall advice and most of what comes back describes a solid poured concrete wall, where holes cast through the face are the only way out for trapped water. A segmental block wall works differently. Water leaves through the stone zone and the collector pipe, so the phrase weep holes retaining wall owners use often does not apply to the wall in their own yard.
Geotextile fabric follows the same logic. It is specified by the wall design and by the soil it is holding back, so it belongs on the plan when the designer calls for it rather than as a habit. Neither detail replaces the two components that carry the load of retaining wall drainage: clean stone and a pipe with somewhere to go.
| Component | Verified specification | If it is left out |
|---|---|---|
| Drainage stone | 12 inch zone of clean 1 inch minus crushed stone | Water sits against the block |
| Collector pipe | 3 inch minimum diameter, set just behind the block face | Stone fills and holds water |
| Outlets | Spaced 20 to 50 feet, secondary pipe at 2 percent minimum slope | The pipe becomes a buried trough |
| Leveling pad | 6 inch minimum thickness under the full excavated width | Courses settle unevenly and joints open |
| Geotextile | Used where the design and soil call for it | Soil can migrate into the stone |
Wondering what is actually behind your wall? Send a photo and a rough height and we will tell you what we can see and what we cannot. Retaining wall drainage is easy to inspect while a wall is going up and costly to add later. Call (631) 275-3142 and we will walk you through it.
Retaining Wall Drainage and Permits Across Suffolk County
There is no single statewide height that triggers a wall permit. The New York Department of State points homeowners back to local law, so the answer changes with the town line.
In the Town of Islip, a retaining wall taller than 18 inches needs a permit, and a wall of 18 inches or less still requires an engineering plan determination. The Town of Huntington requires a permit at 4 feet or more of cumulative height, along with three sets of plans stamped and signed by a registered architect or engineer and a home improvement license with a photo.
That license is not optional anywhere in the county. It is issued by the Suffolk County Department of Labor, Licensing and Consumer Affairs at (631) 853-4600 and required under Suffolk County Code 563-17(A). We work across Suffolk County towns and confirm the threshold before design.
Planning a wall on Long Island this season? We give free estimates back within 12 to 24 hours, back our work with a 3 year workmanship warranty, and offer financing. Reach out through our contact page and we will get the site visit scheduled.
Frequently Asked Questions
How thick should the gravel behind a retaining wall be?
Published guidance for segmental walls calls for a drainage aggregate zone 12 inches thick directly behind the wall units, built from clean crushed stone sized 1 inch minus. Clean matters, because fines mixed into the stone clog that zone.
What size drain pipe goes behind a retaining wall?
The collector pipe should be at least 3 inches in diameter and sit just behind the block face at the bottom of the stone zone. Outlets belong every 20 to 50 feet, with secondary pipe sloped at 2 percent or steeper.
What does hydrostatic pressure do to a block wall?
Saturated backfill adds water pressure on top of the soil pressure already pushing on the wall. A hydrostatic pressure wall failure starts there: at roughly 4 feet of saturated depth the water alone is about 250 pounds per square foot.
Do segmental retaining walls need weep holes?
Weep holes are a poured concrete wall detail, where water has no other exit through a solid face. A segmental block wall drains through its crushed stone zone and its collector pipe instead, so those components carry the job.
Does a retaining wall need a permit in Suffolk County?
Permits come from the town, not the county. Islip requires one above 18 inches of height, and Huntington requires one at 4 feet or more cumulative, with sealed plans. New York State sets no single height, so local law decides.
Getting Retaining Wall Drainage Right the First Time
A wall that fails almost never fails at the block. It fails because water had no route out, and every fix after that involves taking the wall apart. Getting retaining wall drainage right costs a fraction of a rebuild, which is the same math we walk through in our breakdown of what a retaining wall costs and on our retaining wall installation page.
Let’s look at your slope together. With over 15 years of work and more than 2,000 patios behind us across Long Island, we will measure the grade, size the stone and pipe, and confirm the permit path with your town. Call (631) 275-3142 for a free estimate back within 12 to 24 hours.
